The wood pellets are conveyed into the burner by the automatic transferring device, the burning fuel can be used for heat supply in the following: connect with coal-fired boiler, gas steam boiler, rotary dryer, rotary kiln, and for keep warming of apartment, restaurant, hotel, etc.
Capacity for the pellet burner
We has a complete range of wood pellet burner with the heat capacity of 300,000-18,000,000 Kcal/h, matched boiler of 0.5 to 30 tons.
Burner Configuration

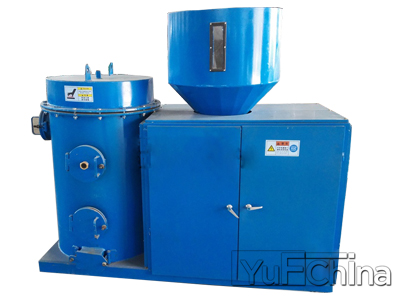

Complete set of biomass pellet burner is composed of main body like hopper, oxygen increase equipment, and feeding conveyor, igniter, control cabinet, and so on. Conveyor system optional by bucket elevator, screw conveyor and belt conveyor.
Widely Application in
Steam Boiler, Thermal Oil Furnace, Rotary Dryer, Spray Drying Line, Coal-fired Boiler, Aluminum Melting Furnace, Incicerator, Forging heating, etc.
Adaptive fuel
Wood pellet, peanut shell pellet, rice husk pellet, waste bacterium rod, nutshell, bagasse...
Particle Diameter: 6-12mm in diamter.
Moisture: 8-15%
| Model |
Heating value
(kcal) |
Power |
Suitable for
(kcal) |
Hopper storage |
Weight |
| YF-20 |
200,000 |
250w |
180,000 |
75kg |
400kg |
| YF-40 |
400,000 |
550w |
180,000-360,000 |
75kg |
500kg |
| YF-60 |
600,000 |
1.1kw |
360,000-550,000 |
100kg |
630kg |
| YF-80 |
800,000 |
1.5kw |
550,000-700,000 |
100kg |
750kg |
| YF-120 |
1200,000 |
3kw |
700,000-110,000 |
150kg |
1000kg |
| YF-180 |
1800, 000 |
5kw |
1800, 000-2400,000 |
200 |
1200 |
| YF-240 |
2400,000 |
11kw |
2400,000 -3600,000 |
260 kg |
1400 |
| YF-360 |
3600,000 |
11kw |
3600,000 |
380kg |
1600 |
Why do you choose biomass pellet burner?
60% energy saving
High Thermal Efficiency--85%
Multiple Safeguards with high security level
Environmental No pollution
What is the Cooling Method?
water jacket cooling and wind cooling optional.
What is the Flame Temperature?
1100-1300 degree
Where can I use this pellet burner?
Steam Boiler, Thermal Oil Furnace, Rotary Dryer, Spray Drying Line, Coal-fired Boiler, Aluminum Melting Furnace, Incicerator, Forging heating, etc.
