What is the application of feed extruder?
This fish feed extruder series is suitable for aquaculture fodder and fishery such as feeddogs, cats, fish, birds, rabbit, shrimp, catfish, mink, fox and other tastes of different pet feed. Apply to professional farmers, small and medium sized feed mills and research institutions.
What is the benefit?
Applying for the pretreatment of animal fodder, it used to reduce nutrition loss, increase the protein content to get the fodder digested easier by animals.
How can I choose the raw materials to produce Floating Pellet?
Optional by raw grain, soybeans, soybean meal, corn, amino acids, miscellaneous meals, additives, whey powder, fats, meat and bone meal, grains, etc.

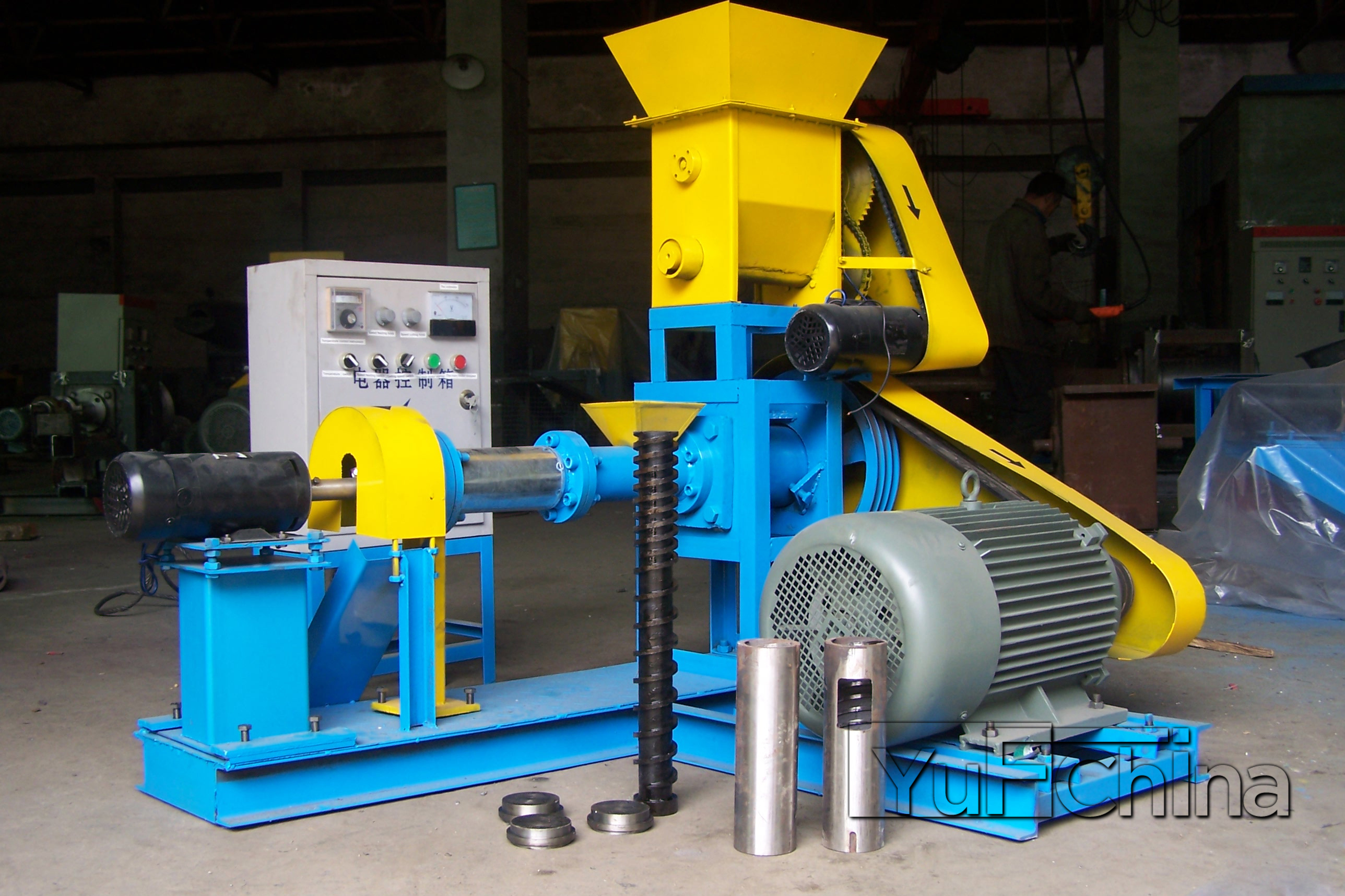

Working principle of fish feed pellet machine
Feed material by feeding device, it will be pressed by the screw shaft with conditioner under high pressure and temperature which makes the raw material fully puffed . Pellets can be different shape and size by changing the mold . Then cutting blades will cut the pellets into different length.
Dry type fish feed pellet machine specifications
| Model |
Capacity(kg/h) |
Power(kw) |
Feed power(kw) |
Screw diameter(mm) |
Cutting power(kw) |
| GP40-C |
30-40 |
5.5 |
0.4 |
Φ40 |
0.4 |
| GP50-C |
60-80 |
11 |
0.4 |
Φ50 |
0.4 |
| GP60-C |
120-150 |
15 |
0.4 |
Φ60 |
0.4 |
| GP70-B |
180-200 |
18.5 |
0.4 |
Φ70 |
0.4 |
| GP80-B |
200-250 |
22 |
0.4 |
Φ80 |
0.6 |
| GP90-B |
300-350 |
37 |
0.6 |
Φ90 |
0.8 |
| GP120-B |
500-600 |
55 |
1.1 |
Φ120 |
2.2 |
| GP135-B |
700-800 |
75 |
1.1 |
Φ133 |
2.2 |
| GP160-B |
1000-1200 |
90 |
1.5 |
Φ155 |
3 |
| GP200-B |
1800-2000 |
132 |
1.5 |
Φ195 |
3-4 |
Wet type fish feed pellet machine specifications
| Model |
Capacity(kg/h) |
Power(kw) |
Feed power(kw) |
Screw diameter
(mm) |
Cutting power
(kw) |
Adjusted power (kw) |
| SP60-B |
0.18-0.2 |
15 |
0.4 |
Φ60 |
0.4 |
0.75 |
| SP70-B |
0.25-0.30 |
18.5 |
0.6 |
Φ70 |
0.6 |
0.75 |
| SP80-B |
0.35-0.40 |
22 |
1.1 |
Φ80 |
0.8 |
1.1-1.5 |
| SP90-B |
0.50-0.60 |
37 |
1.1 |
Φ90 |
1.1 |
2.2 |
| SP120-B |
0.70-0.80 |
55 |
1.1 |
Φ120 |
1.5 |
2.2-3.0 |
| SP135-B |
1.0-1.2 |
75 |
1.5 |
Φ135 |
2.2 |
3.0-4.0 |
| SP160-B |
1.8-2.0 |
90 |
2.2 |
Φ155 |
2.2-3.0 |
4.0-5.5 |
| SP200-B |
3.0-4.0 |
132 |
2.2 |
Φ195 |
3.0-4.0 |
5.5 |
How many hours floating for the fish feed?
It can float more than 12 hours on the surface of the water and don't sink and dissolve,also don't pollute the water,sterilization and reduce fish diseases.
What is difference between dry and wet type?
Wet type working with conditioning device and boiler.
The output of wet machine is higher and the material will be slightly fine.
I am a small farmer, can I use this machine?
This Pellet Extruder special for professional farmers, small and medium sized feed mills and research institutions.
Which materials can I use?
Corn, soybean and animal waste as raw materials which can be extruded directly. unique taste and rich nutrition, organization delicate.
Can I feed both fish and shrimp?
One machine can do that, just change the different mould you can produce different aquatic feed, such as fish, shrimp and other tastes.
