The vibrating sieve is a mechanical, it can classifing material by the different sizes. Mostly applicable for screening and classifying of wood pellet, pellet feed, crumble feed and semi finished products which come from the second grinding system. It is also can be used for cleaning and classifying granular, powder materials.

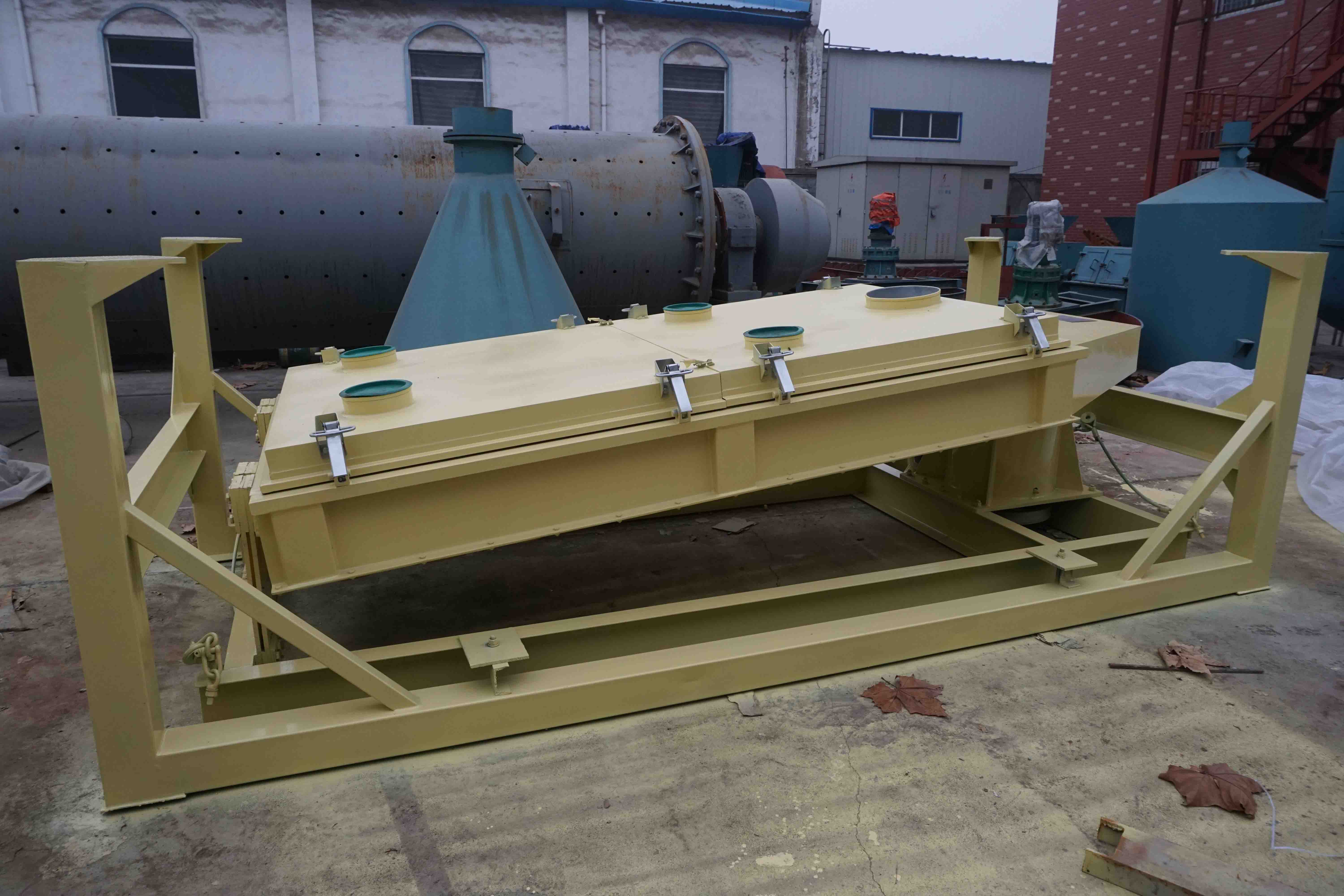

Application of Gyratory screening machine
It is a new screening device which is developed mainly aiming at screening of bulky urea and fertilizer, also used widely for screening sugar,salt,activated carbon, sand, stone powder, grain etc.
Feature
Novelty Structure
New type of drive transmission structure
imported thicken NSK bearing.
low noise & less vibration.
Humanization Design
One-layer, two-layer or three-layer screen structure are optional.
| model |
Capacity (t/h) |
Power (kw) |
Vibrating frenquency (r/min) |
（N）Excitation force |
Screen area (mm) |
| SKFZ60*2C |
1-2 |
0.25 |
920 |
3000 |
1000*600 |
| SKFZ80*2C |
2-4 |
0.25 |
920 |
5000 |
1500*800 |
| SKFZ100*2C |
3-6 |
0.37 |
920 |
6000 |
1800*1000 |
| SKFZ120*2C |
5-8 |
0.37 |
920 |
6000 |
2000*1200 |
| SKFZ150*2C |
8-12 |
0.55 |
920 |
8000 |
2200*1500 |
How it working?
While vibrating, the particle will pass through the sieve mesh by different sizes. Unqualified sizes will be return separated.
Why I choose this machine?
It is economic for input and easy operatng. The pellet after screening by this machine, will clean the dust also.
Which kind of material I can screening?
sugar,salt,activated carbon, sand, stone powder, grain etc.
