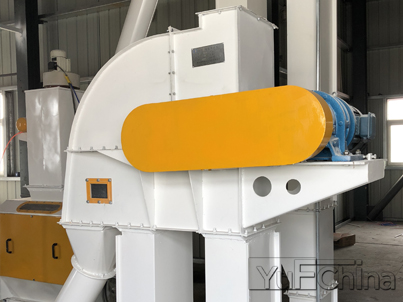

A compelet set of bucket elevator include with boot or loading arrangement, chains, buckets, sheet metal casing, motor, gear box, bucket elevator head, bearing, discharge, etc.
The bucket elevator machine is specially designed for vertical elevating for bulk materials of powders, granular, and small blocks, it use forging ring chains as the traction part, adopts mixed type or gravity discharging and excavated type charging. The max elevating height reaches to 40 meters. Ring chain bucket elevator is widely used for bulk material which density less than 1.5t/m3 and temperature lower than 250℃, such as Coal, cement, sand, fertilizer, food, etc.
Advantages
1. energy saving
2. Wide range of application
3. Strong reliability
4. Longer service life
5. Stainless steel santitary construction , 90-degree
6. Automatic stop & start sensor control with filling from hopper or to scale
| Model |
HL160 |
HL250 |
HL315 |
HL400 |
| Hopper Type |
9 |
h |
zD |
Sd |
q |
h |
zD |
Sd |
Q |
h |
zD |
Sd |
q |
h |
zD |
Sd |
| Capacity(m3/h) |
5.4 |
9.6 |
9.6 |
16 |
12 |
22 |
23 |
36 |
17 |
30 |
25 |
40 |
24 |
46 |
41 |
66 |
| Bucket Width(mm) |
160 |
250 |
315 |
400 |
| Bucket Volume(L) |
0.5 |
0.9 |
4.2 |
1.9 |
1.3 |
2.2 |
3.0 |
4.6 |
2 |
3.6 |
3.8 |
5.8 |
3.1 |
5.6 |
5.9 |
9.4 |
| Bucket Distance(mm) |
280 |
350 |
360 |
450 |
400 |
500 |
480 |
560 |
| Conveyor Width(mm) |
280 |
300 |
400 |
500 |
| Running Speed(mm) |
1.4 |
1.6 |
1.6 |
1.8 |
| Max Input Size |
25 |
35 |
45 |
55 |
How to sizing the model of bucket elevator?
Usually bucket elevator model decided by the follow factor:
1. Material form: Powder material, pellet shape material or small masses.
2. Material physical property: If material is sticky or adhesive, with moisture.
3. The proportion of material: Usually bucket elevator designed for material with bulk specific weight<1.6, too big material proportion need calculate the Traction and the tensile strength of transmission part.
4. Throughput per unit time:Final transport quantity decide by bucket shape, speed, material proportion, material character, bucket quantity.
What is the material for the bucket?
food grade plastic of polyproylene(PP)
What is the size of the bucket?
2liter or 4liter for option
Will you help with installation and stuff training ?
Of course, we can send our skilled engineers to provide you entire service from the installation, commissioning and training.
