Rotary screen is mostly used in compound fertilizer industry and pellet production line. For screening of topsoil, black earth, compost, organic waste, green waste, wood waste (bark, sawdust, woodchips etc), domestic refuse, recycled asphalt, concrete, slag coal, sand, gravel, clay and many other materials.
Product Introduction
Technical parameters
FAQ
The Trommel screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce cost for operation & investment, in order to increase product quality, while allowing rapid and large volume processing.This Trommel also frequently be used for ore washing, sand washing, grading and desliming etc.
Working Principle

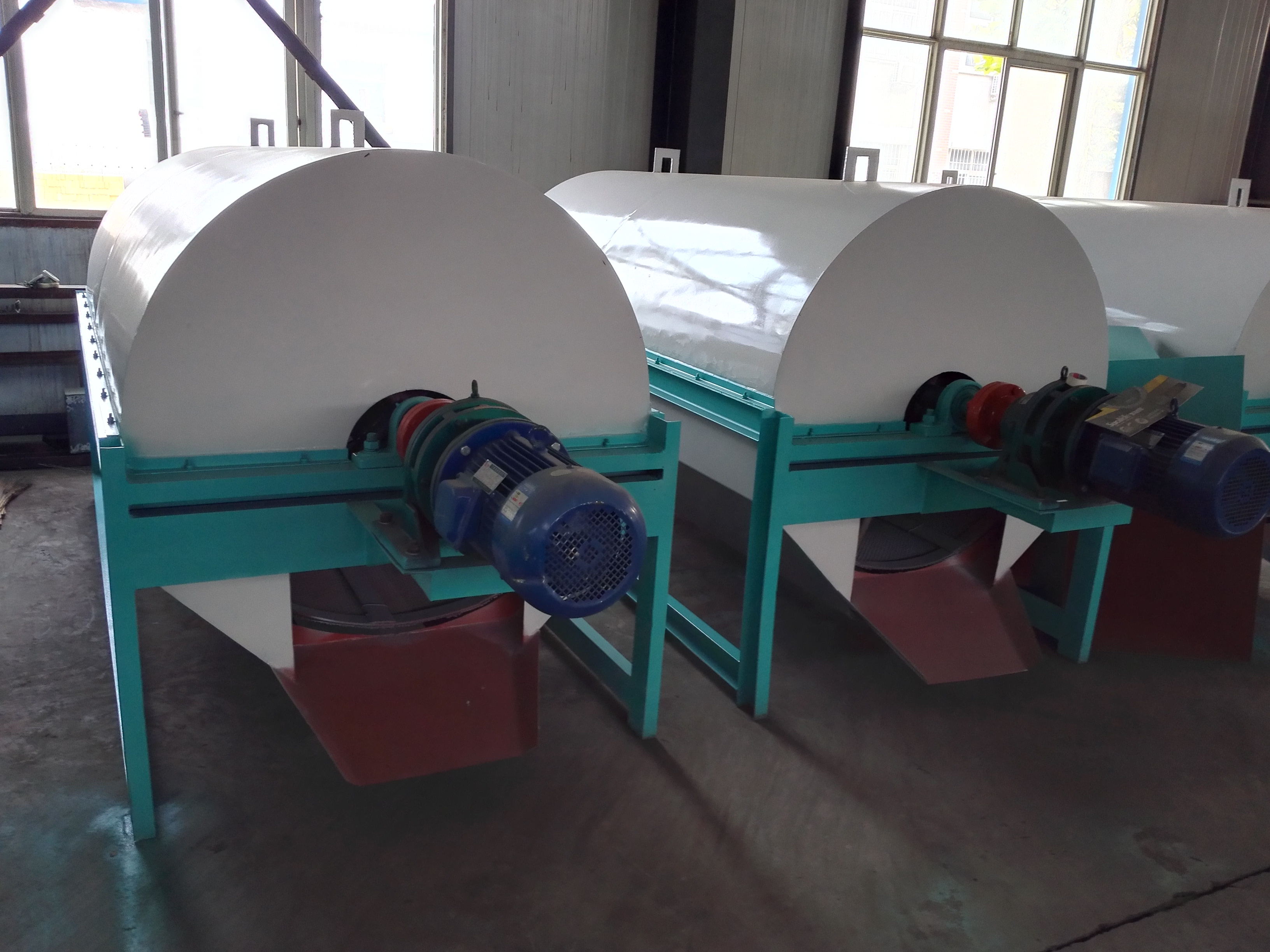

Trommel screen mainly consists of motor, reducer, roller device, frame, sealing cover, inlet and outlet components.
When the material into the roller device, through the roller device of the tilt and rotation, make the materials on surface of screen to flipping and rolling, qualified size will discharge from the bottom of fine material discharger. While coarse material will discharge from the rough discarg end.
Application
Biomass Sorting, Municipal Waste, Metal Sorting, Plastic Sorting, Organic Waste, Fertilizer
Model
Power
(kw)
Capacity (t/h)
Overal dimension(mm)
Remark
YFTS80×2
1.1
0.5-1
2150×1200×1200
Whole sealing
YFTS100×2
1.5
1-2
2800×1300×1460
YFTS120×3
2.2
1.5-4
4420×1500×3800
YFTS150×4
3
3-5
5160×1700×4400
YFTS180×6
4
5-10
6300×2200×2600
YFTS200×6
5.5
8-12
7000×2500×5000
YFTS220×6
7.5
9-15
7200×2800×5000
What is the function for a trommel Screen?
For example, when you use sawdust for pellet macking, there might be some iron, stone, sand, etc waste contained with the raw materials which you source from the market, The trommel screen will help you to remove the dust before sawdust enters into the pellet mill or hammer mill, which will protect the machine running and prolonged lifetime.
